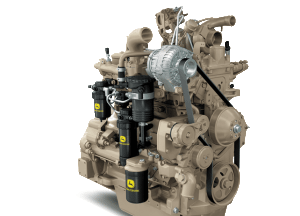

John Deere 4045 Engine Specifications
When you think John Deere you think of tractors and by definition the famed John Deere diesel engines. One of the most popular and familiar diesel engines in the John Deere fleet is the famed PowerTech John Deere 4045 engine. But how did John Deere get it start from making plows to producing world class diesel engines? This article will explain the beginnings of the John Deere Corporation and the technical specifications of John Deere 4045 diesel engines.
John Deere History
The John Deere Corporation began in 1837 from humble beginnings in Grand Detour, Illinois when founder, John Deere, spotted an opportunity one fine afternoon while working in his blacksmith shop. While forging a steel blade for a local sawmill Deere’s mighty swing of the hammer accidentally fractured the blade into two pieces sending the protrusion flying. The jagged steel scrap barley missed Deere and landed face up in the dirt. Deere, counting his lucky stars, bent over to pick up the piece of metal and was struck with a life changing idea. The piece of steel resembled an upside down U shape which Deere associated with equipment that plows of his time frequently were made out of. However, the blades plows of his time were more angular versus concave. One problem with the angular design of cast-iron plows was that soil would stick to the blade and had to be cleaned off manually before going back to work. This cleaning process had to be repeated hundreds of times per work day thus interrupting the work day of the farmer. Deere put his idea of a slight U shaped moldboard into practice and fashioned a plow blade out of the second-hand steel blade that nearly killed him. The design worked perfectly as the soil easily slid off of the steel material where before it would stick to the cast iron. The rest is history and John Deere set out to design and sell farming equipment which later would lead the company down the path of producing diesel engines for their tractors. Today the most popular diesel engine John Deere produces is the 4045 diesel engine.
John Deere 4045 Models
The John Deere PowerTech 4045 comes in four basic models. The John Deere 4045 PowerTech Engine are 4.5 L and are designed for less taxing smaller industrial applications. The John Deere 4045 PowerTech M model is designed with 2-valve heads, static turbos and more reliable mechanical fuel systems. The mechanical controls are designed with ease of use in mind and are simple to maintain and operate. The Remanufactured John Deere 4045 engine PowerTech standard model builds upon previous 4 cylinder engine models with the new electronically controlled fuel system incorporated into the ECM. The John Deere 4045 PWX model is an upgrade in the emissions department and features some of the best emissions and exhaust DPF technology. The emissions control technology is coupled with wastegated turbocharging to produce a more precise chemical reaction during ignition to create a quick response of peak torque during sub-optimal operating conditions. The PWX also has an upgrade in the design to the 4-valve cylinder heads to provide increased airflow for optimal low-speed torque. The last John Deere 4045 PowerTech engine is known as the PVX which uses variable geometry turbocharging to improve combustion efficiency ratios which in-turns increases efficiency, reduces emission particulates and increases the overall fuel consumption.
Each sub model of the John Deere 4045 is a little bit different however in general the base model’s operating specifications are stated below:
Remanufactured John Deere 4045 Engine Specifications
• Number of Cylinders: 4
• Displacement: 4.5L (275 cu in)
• Bore and Stroke: 106 x 127 mm (4.17 x 5.00 in)
• Compression Ratio: 17. 2:1
• Engine Type: In-Line, 4-Cycle
• Aspiration: Turbocharged
• Exhaust Manifold: Watercooled
• Cylinder Liners: Wet-Type Replaceable
• Noise Control: Low Vibration Internal Balancers
• Corrosion Resistance: Components protection from Seawater
• Oil Filter: Remote Access
• Oil Tank: Oil Fil and Dipstick Combinations
• Fuel System: Mechanical Governor
• Heat Exchanger: Standard
• Keel Cooled: Optional
• New Emissions Standards: Tier II-Tier IV
• Rated Power: 78-112 kW (105-150 hp)
• Rated Speed: 2300-2600 rpm
• Low Idle Speed: 700
• Peak Torque: 339-374 ft-lb
• Peak Torque Speed: 1500-1800
• Fuel Consumption: 26.3-29.7 L/h (6.9-7.8 g/h)
• Typical Load Factor: <40% -<65%
• Typical Annual Usage: 3,000-5,000 for smaller models, 1,000-3,000 hr for larger models
• Typical Full-Power Operation: 16 hr for smaller models, 1 hr per 12 hr period for larger models
• Length: 885 mm (34.8 in)
• Width: 712 mm (28.0)
• Height: 912 mm (35.9)
• Dry Weight: 462 kg (1019 lbs.)
• Maximum Installed Angle: Front Up Degrees: 12, Front Down Degrees: 0
EPA Emission Tier Ratings for the John Deere 4045 Engine
Non-Certified
| John Deere 4045 Engine Family | Rating | Power Rating |
|---|---|---|
| PowerTech | 4045DF120_A_S0_R0 | 84 HP (63 kW) @ 2500 rpm |
| PowerTech | 4045TF220_B_S0_R0 | 115 HP (86 kW) @ 2500 rpm |
Tier I
| John Deere 4045 Engine Family | Rating | Power Rating |
|---|---|---|
| PowerTech | 4045DF150_F_S0_R0 | 48 HP (36 kW) @ 2250 rpm |
| PowerTech | 4045DF150_G_S0_R0 | 70 HP (52 kW) @ 2500 rpm |
| PowerTech | 4045DF150_C_S0_R0 | 78 HP (58 kW) @ 2200 rpm |
| PowerTech | 4045DF150_B_S0_R0 | 80 HP (60 kW) @ 2500 rpm |
| PowerTech | 4045DF150_E_S0_R0 | 82 HP (61 kW) @ 2400 rpm |
| PowerTech | 4045DF150_A_S0_R0 | 84 HP (63 kW) @ 2500 rpm |
| PowerTech | 4045TF150_E_S0_R0 | 90 HP (67 kW) @ 2200 rpm |
| PowerTech | 4045TF150_D_S0_R0 | 98 HP (73 kW) @ 2200 rpm |
| PowerTech | 4045TF150_I_S0_R0 | 99 HP (74 kW) @ 2500 rpm |
| PowerTech | 4045TF150_F_S0_R0 | 105 HP (78 kW) @ 2300 rpm |
| PowerTech | 4045TF250_C_S0_R0 | 114 HP (85 kW) @ 2200 rpm |
| PowerTech | 4045TF150_A_S0_R0 | 115 HP (86 kW) @ 2500 rpm |
| PowerTech | 4045TF250_A_S0_R0 | 125 HP (93 kW) @ 2400 rpm |
| PowerTech | 4045TF250_A1_S0_R0 | 125 HP (93 kW) @ 2400 rpm |
| PowerTech | 4045HF150_A_S0_R0 | 139 HP (104 kW) @ 2400 rpm |
Tier II
| John Deere 4045 Engine Family | Rating | Power Rating |
|---|---|---|
| PowerTech | 4045DF270_C_S0_R0 | 74 HP (55 KW) @ 2500 rpm |
| PowerTech | 4045DF270_B_S0_R0 | 80 HP (60 kW) @ 2500 rpm |
| PowerTech | 4045TF270_D_S0_R0 | 84 HP (63 kW) @ 2500 rpm |
| PowerTech | 4045TF270_C_S0_R0 | 99 HP (74 kW) @ 2200 rpm |
| PowerTech | 4045TF270_B_S0_R0 | 99 HP (74 kW) @ 2500 rpm |
| PowerTech | 4045TF275_B_S0_R0 | 110 HP (82 kW) @ 2400 rpm |
| PowerTech | 4045HF275_F_S0_R0 | 115 HP (86 kW) @ 2000 rpm |
| PowerTech | 4045TF275_C_S0_R0 | 115 HP (86 kW) @ 2500 rpm |
| PowerTech | 4045HF275_E_S0_R0 | 125 HP (93 kW) @ 2200 rpm |
| PowerTech | 4045HF275_D_S0_R0 | 125 HP (93 kW) @ 2400 rpm |
| PowerTech | 4045HF275_J_S0_R0 | 139 HP (104 kW) @ 2200 rpm |
| PowerTech | 4045HF275_C_S0_R0 | 139 HP (104 kW) @ 2400 rpm |
| PowerTech | 4045HF475_B_S0_R0 | 160 HP (119 kW) @ 2200 rpm |
| PowerTech | 4045HF475_E_S0_R0 | 173 HP (129 kW) @ 2200 rpm |
| PowerTech | 4045HF475_A_S0_R0 | 173 HP (129 kW) @ 2400 rpm |
Tier III
| John Deere 4045 Engine Family | Rating | Power Rating |
|---|---|---|
| PowerTech M | 4045TF280_C_S0_R0 | 75 HP (56 kW) @ 2400 rpm |
| PowerTech M | 4045TF280_B_S0_R0 | 80 HP (60 kW) @ 2400 rpm |
| PowerTech M | 4045TF280_A_S0_R0 | 84 HP (63 kW) @ 2400 rpm |
| PowerTech M | 4045HF280_C_S0_R0 | 99 HP (74 kW) @ 2200 rpm |
| PowerTech M | 4045HF280_B_S0_R0 | 99 HP (74 kW) @ 2400 rpm |
| PowerTech E | 4045TF285_D_S0_R0 | 84 HP (63 kW) @ 2200 rpm |
| PowerTech E | 4045TF285_C_S0_R0 | 85 HP (63 kW) @ 2400 rpm |
| PowerTech E | 4045TF285_B_S0_R0 | 99 HP (74 kW) @ 2400 rpm |
| PowerTech E | 4045HF285_D_S0_R0 | 115 HP (86 kW) @ 2200 rpm |
| PowerTech E | 4045HF285_C_S0_R0 | 115 HP (86 kW) @ 2400 rpm |
| PowerTech E | 4045HF285_E_S0_R0 | 125 HP (93 kW) @ 2200 rpm |
| PowerTech E | 4045HF285_F_S0_R0 | 125 HP (93 kW) @ 2400 rpm |
| PowerTech E | 4045HF285_G_S0_R0 | 139 HP (104 kW) @ 2400 rpm |
| PowerTech Plus | 4045HF485_D_S0_R0 | 149 HP (111 kW) @ 2000 rpm |
| PowerTech Plus | 4045HF485_C_S0_R0 | 154 HP (115 kW) @ 2200 rpm |
| PowerTech Plus | 4045HF485_B_S0_R0 | 154 HP (115 kW) @ 2400 rpm |
| PowerTech Plus | 4045HF485_A_S0_R0 | 173 HP (129 kW) @ 2400 rpm |
Tier IV
| John Deere 4045 Engine Family | Rating | Power Rating |
|---|---|---|
| PowerTech M | 4045TF290_A | 74 HP (55 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_J | 84 HP (63 kW) @ 2200 rpm |
| PowerTech PWX | 4045HFC92_K | 84 HP (63 kW) @ 2200 rpm |
| PowerTech PWX | 4045HFC92_H | 84 HP (63 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_I | 84 HP (63 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_F | 99 HP (74 kW) @ 2200 rpm |
| PowerTech PWX | 4045HFC92_G | 99 HP (74 kW) @ 2200 rpm |
| PowerTech PWX | 4045HFC92_D | 99 HP (74 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_E | 99 HP (74 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_C | 115 HP (86 kW) @ 2200 rpm |
| PowerTech PWX | 4045HFC92_B | 115 HP (86 kW) @ 2400 rpm |
| PowerTech PWX | 4045HFC92_A | 122 HP (91 kW) @2200 rpm |
| PowerTech PWX | 4045HFC92_L | 137 HP (102 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_M | 125 HP (93 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_N | 125 HP (93 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_K | 125 HP (93 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_L | 125 HP (93 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_I | 139 HP (104 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_J | 139 HP (104 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_H | 139 HP (104 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_G | 139 HP (104 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_E | 156 HP (116 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_F | 156 HP (116 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_C | 156 HP (116 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_D | 156 HP (116 kW) @ 2400 rpm |
| PowerTech PVX | 4045HFC93_B | 173 HP (129 kW) @ 2200 rpm |
| PowerTech PVX | 4045HFC93_A | 173 HP (129 kW) @ 2400 rpm |
*EPA Tier Rating Chart By John Deere Corporation

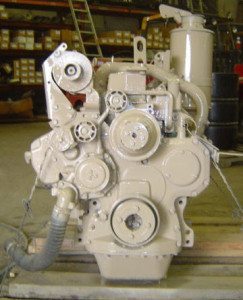

Our Remanufactured John Deere 4045 Engines
The process for our remanufactured John Deere 4045 engines is meticulous well beyond standards brought forth by the AERA. We only use O.E.M. parts and remanufacture our engines to O.E.M spec so the 4045 engine is in exact condition as it was the day it left the John Deere Factory. All engine cores are magnafluxed for cracks and wear before
purchase to ensure short lead times and exceptional quality. John Deere 4045 engines are all machined in our 10,000 sq. ft diesel reman engine facility in Denver, Colorado. We do not outsource or broker anything. From start to finish the John Deere 4045 engine is completed in-house with our own technicians. John Deere 4045 engines come with remanufactured the camshaft, crankshaft, lifters, connecting rods, cylinder head, cylinder block and rocker arms. We don’t believe in wasting your time and will quote you an accurate lead time based upon our machine shop and engine shop backlog. Typically lead time is 2-3 weeks. We also have a large selection of good used running takeout John Deere 4045 engines which have had the oil sample taken, dyno tested and run.
Check out our inventory of used John Deere 4045 engines here
Our Quality Control Processes for John Deere 4045 Reman Engines Include:
• 13 Point Engine Build Specifications Review
• 15 Point Core Check In Process
• 12 Point Engine Assembly Process
• 11 Point Quality Control Process
• 7 Point Engine Long Block Process
• 9 Point Engine Short Block Process
• 21 Point Engine Teardown Process
1 Year Warranty Program on JD 4045 Engines
REMANUFACTURED CAMSHAFTS, LIFTERS/FOLLOWERS, CONNECTING RODS, CRANKSHAFTS, CYLINDER HEADS, CYLINDER BLOCKS, ENGINES
Capital Reman Exchange, LLC warrants its remanufactured products to be free from defects in material or workmanship and provides a warranty that includes 12 months unlimited miles of which the first 6 months will include parts and labor. The second 6 months will include replacement parts or components either new or remanufactured to OEM specifications. Read about the entire warranty program here.
